Podstawa bezpiecznikowa PBD

PBD 1

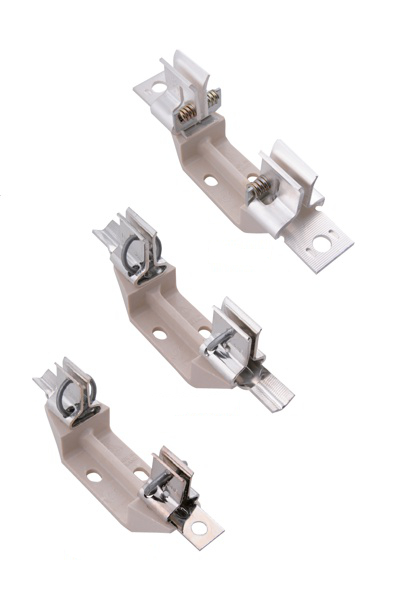

PBD fuse base

  • Iₙ=250 A, Uₙ=690 V

  • For installation on a mounting plate

  • Tin plated (PBD) and silver plated (PBD F) copper contacts

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the PBD 1 and PBD F fuse base has to offer

Available in single-pole or three-pole versions

Possible cable connections: M10 screw terminal and V-clamp for cables up to 120 mm²

Application


PBD fuse bases are a fixed component of an industrial fuse, suitable for blade-type fuse links and designed to integrate them into the current path of electrical power distribution equipment. The bases are made of flame-retardant plastic, with copper jaw contacts—galvanically tin-plated—screwed onto them in sizes 00, 1, 2. Versions PBD F have silver-plated, whilst in size 3, the contacts are silver-plated as standard. Fusebases are intended for installation in enclosed spaces (free from dust, corrosive or explosive gases), such as:

  • LV cable distribution and utility cabinets,
  • LV switchgear and panels for industrial and power distribution,
  • LV switchgear for reactive power compensation.


They may be installed at ambient temperatures ranging from -25°C to +55°C, at altitudes up to 2000 m above sea level, and outdoors in enclosures with IP34 protection degree or higher.





Versions


For sizes 1 – 250 A

  • With double-sided screw terminals for cable lugs or busbars: single-pole base PBD 1, three-pole base PBD 13
  • With a ‘V’ terminal on one side and a screw terminal on the other – single-pole base PBD 1-1V, three-pole base PBD 13-1V
  • With ‘V’ terminals on both sides – single-pole base PBD 1-2V, three-pole base PBD 13-2V
