Podstawa bezpiecznikowa PBD

PBD 2

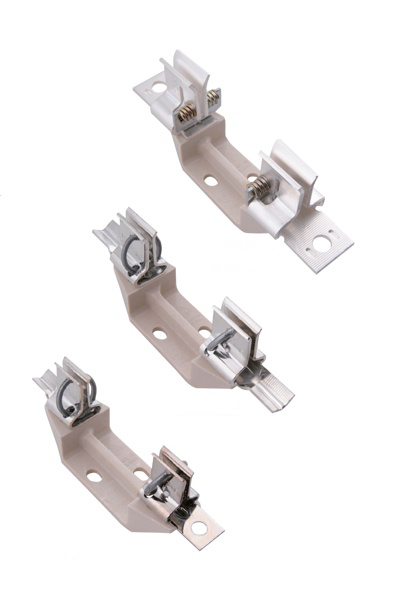

PBD fuse base

  • Iₙ=400 A, Uₙ=690 V

  • For installation on a mounting plate

  • Tin plated (PBD) and silver plated (PBD F) copper contacts

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the PBD 2 and PBD 2F fuse base has to offer

Designed as single-pole

Available cable connections: M10 screw terminal and V-clamp for cables up to 240 mm²

Application


PBD fuse bases are a fixed component of an industrial fuse, suitable for accommodating a blade-type fuse link and integrating it into the current path of electrical power distribution equipment. The bases are made of flame-retardant plastic, with copper jaw contacts—galvanically tin-plated—screwed onto them in sizes 00, 1, 2. Versions PBD 2F have silver-plated contacts, whilst in size 3, the contacts are silver-plated as standard. Fuseb ases are intended for installation in enclosed spaces (free from dust, corrosive or explosive gases), such as:

  • LV cable distribution and utility cabinets,
  • LV switchgear and panels for industrial and power distribution,
  • LV switchgear for reactive power compensation.


They may be installed at ambient temperatures ranging from -25°C to +55°C, at altitudes up to 2000 m above sea level, and outdoors in enclosures with a IP34 protection degree or higher.





Versions


For sizes 2 – 400 A

  • With double-sided screw terminals for PBD 2 cable lugs
  • With a ‘V’ terminal on one side and a screw terminal on the other – PBD 2-1V
  • With ‘V’ terminals fitted on both sides – PBD 2-2V
