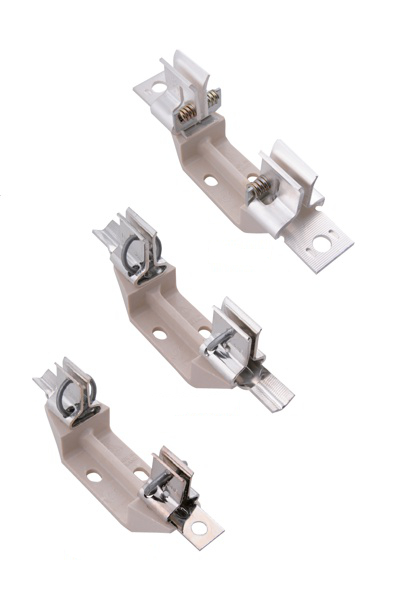

Podstawa bezpiecznikowa PBD

PBD 3

PBD fuse base

  • Iₙ=630 A, Uₙ=690 V

  • For installation on a mounting plate

  • Silver plated copper contacts

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the PBD 3 fuse base has to offer

Designed as single-pole

Possible cable connections: M12 screw terminal and V-clamp for cables up to 240 mm²

Application


PBD fuse bases are a fixed component of an industrial fuse, suitable for fuse links and designed to integrate them into the current path of electrical power distribution equipment. The bases are made of flame-retardant plastic, with copper jaw contacts. The contacts of PBD size 3 are silver-plated as standard. The fuse bases are intended for installation in enclosed spaces (free from dust, corrosive or explosive gases), such as:

  • LV cable distribution and utility cabinets,
  • LV switchgear for industrial and power distribution,
  • LV switchgear for reactive power compensation.


They may be installed at ambient temperatures ranging from -25°C to +55°C, at altitudes up to 2000 m above sea level, and outdoors in enclosures with IP34 protection degree or higher.


Versions


For sizes 3 – 630 A

  • With double-sided screw terminals for PBD 3 cable lug terminals
