Rozłącznik izolacyjny - ARS 00/100 mm pro

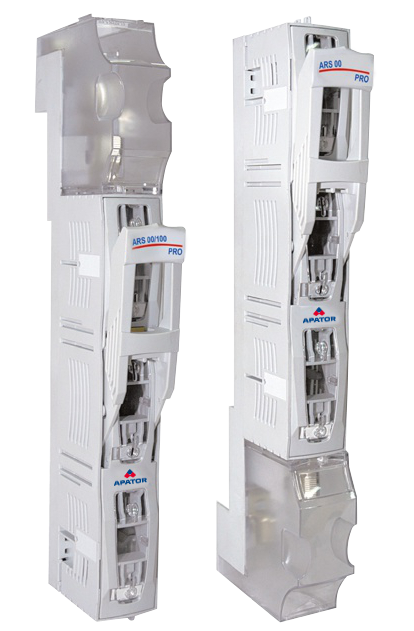

ARS 00/100 mm pro

Fuse switch disconnector

  • Suitable for NH00-size fuse links (160 A)

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

  • Two-pole contact arrangement

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the ARS 00/100 mm pro fuse switch disconnector has to offer

ARS pro fuse switch disconnectors are used for energy distribution and to provide protection against the effects of short circuits and overloads in three-phase AC circuits. They are designed for direct installation on horizontal or vertical busbar systems as three-phase vertical units.

Designed for installation on 100 mm busbar system

The option to fit a padlock and seal the disconnector when it is locked and parked

Versions



Installation on a 100 mm busbar system
3-POLE SWITCHING - all phases simultaneously



  • ARS 00/100 mm for cable connection: bridge terminals (S) 4–70mm² and M8 screw terminals
  • ARS 00/100 mm-V pro cable connection: V-type terminals; V - clamp 25-150SW

Applications of the ARS 00/100 mm pro fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low-voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
