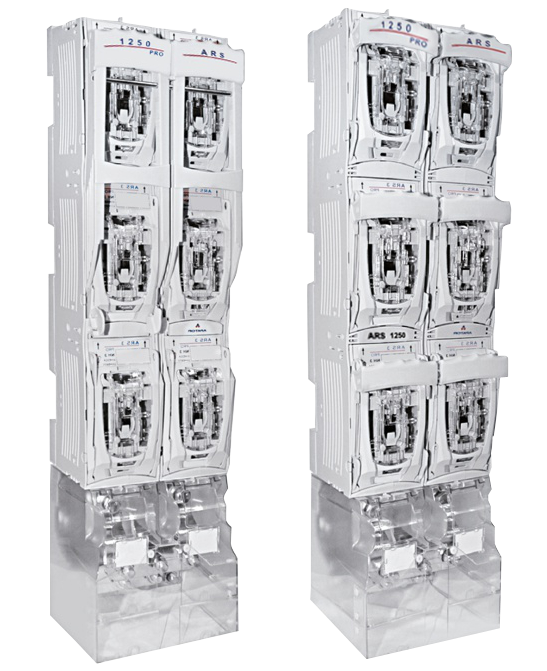

ARS 1250 pro

Fuse switch disconnector

  • Suitable for NH3-size fuse links (630 A)

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

  • Two-pole contact arrangement

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the ARS 1250 pro fuse switch disconnector has to offer

ARS pro fuse switch disconnectors are used for energy distribution and to provide protection against the effects of short circuits and overloads in three-phase AC circuits. They are designed for direct installation on horizontal or vertical busbar systems as three-phase vertical units.

Option to change the direction from top to bottom

Designed for installation on a 185mm busbar system

Width of the disconnector– 200 mm

Versions



Installation on a 185mm busbar system, disconnector width 200 mm,
1-POLE SWITCHING - each phase independently
 		Installation on a 185mm busbar system, disconnector width 200 mm,
3-POLE SWITCHING - all phases simultaneously

  • ARS 1250-1-3M pro – 2 ARS 3 pro fuse switch disconnectors mechanically and electrically interlocked, cable connection: three M12 nuts per phase
  • ARS 1250-1-4M pro: 2 ARS 3 pro fuse switch disconnectors mechanically and electrically interlocked; cable connection: four M12 nuts per phase





  • ARS 1250-6-3M pro mechanically and electrically coupled 2 ARS 3 pro switch disconnectors for cable connection: three M12 nuts per phase
  • ARS 1250-6-4M pro, mechanically and electrically coupled, 2 ARS 3 pro switch disconnectors, cable connection: four M12 nuts per phase




Applications of the ARS 1250 pro fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
