Rozłącznik izolacyjny ARS 630 kVA pro

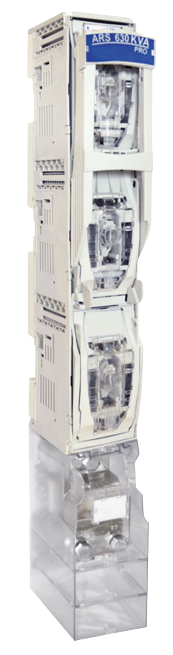

ARS 630 kVA pro

Fuse switch disconnector

  • Main fuse switch disconnector for transformers with a capacity of up to 630 kVA

  • Suitable for NH3-size (630 A) fuse links with a gTr class

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the ARS 630 kVA pro fuse switch disconnector has to offer

Main fuse switch disconnector for transformers with a capacity of up to 630 kVA, suitable for
NH3-sized fuse links with gTr characteristics.

Two-pole contact arrangement

Option to change the direction from top to bottom

Designed for installation on a 185mm busbar systems

Versions



Installation on a 185 mm busbar system,
1-POLE SWITCHING - each phase independently



Installation on a 185 mm busbar system,
3-POLE SWITCHING - all phases simultaneously

  • ARS 630 kVA-1-2M pro cable connection: two M12 nuts per phase, connection width 100 mm
  • ARS 630 kVA-1-3M pro cable connection: three M12 nuts per phase, connection width 200 mm



  • ARS 630 kVA-6-2M pro cable connection: two M12 nuts per phase, connection width 100 mm
  • ARS 630 kVA-6-3M pro cable connection: three M12 nuts per phase, connection width 200 mm


Applications of the ARS 630 kVA Pro fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
