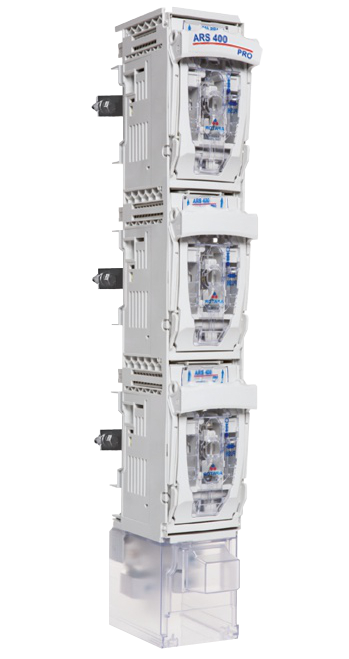

ARS NL NR pro

Fuse switch disconnector with lateral busbar terminals

  • A fuse switch disconnector for disconnecting and connecting busbar systems

  • Suitable for NH2 (400 A) and NH3 (630 A) size of fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the ARS NR No. pro fuse switch disconnector has to offer

Two-pole contact arrangement

Option to change the direction from top to bottom

Designed for installation on a 185mm busbar systems

Versions



Installation on a 185 mm busbar system,
1-POLE SWITCHING - each phase independently
 		Installation on a 185 mm busbar system,
3-POLE SWITCHING - all phases simultaneously

  • ARS 400-1-NL pro cable connection: M12 screw, cable outlets on the left
  • ARS 630-1-NL pro cable connection: M12 screw, cable outlets on the left
  • ARS 400-1-NR pro cable connection: M12 screw, cable outlets on the right
  • ARS 630-1-NR pro cable connection: M12 screw, drain outlet on the right



  • ARS 400-6-NL pro cable connection: M12 screw, drain outlet on the left
  • ARS 630-6-NL pro cable connection: M12 screw, drain outlets on the left
  • ARS 400-6-NR pro cable connection: M12 screw, drain outlets on the right
  • ARS 630-6-NR pro cable connection: M12 screw, cable outlets on the right



Applications of the ARS NL NR pro fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

Thefuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
