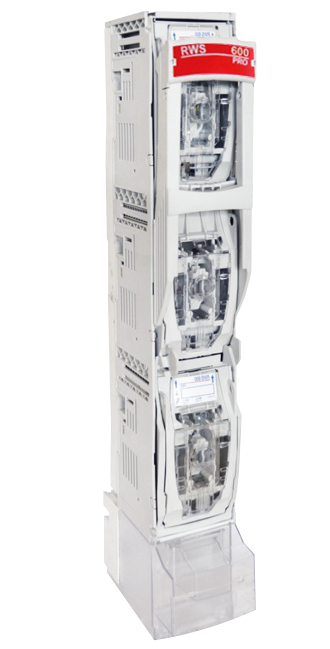

Rozłącznik izolacyjny RWS 600 pro

RWS 600 pro

Fuse switch disconnectors

  • Designed for operation with solid links of size 2

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

  • Two-pole contact arrangement

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RWS 600 pro fuse switch disconnector has to offer

Option to change the direction from top to bottom

Designed for installation on a 185mm busbar system

Versions



Installation for a 185 mm busbar system, 3-POLE SWITCHING - all phases simultaneously

  • RWS 600-6-V for cable connection: V-type terminals; V-clamp 240mm²
  • RWS 600-6-M pro cable connection: M12 nuts
  • RWS 600-6-2V for cable connection: 2V-type terminals; double V-clamp 240mm²

Applications of the RWS 600 pro fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
