Rozłącznik izolacyjny smartARS 2 pro

smartARS 2 pro

Fuse switch disconnector

  • Suitable for NH1 (250 A) and NH2 (400 A) size fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

  • Two-pole contact arrangement

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the smartARS 2 pro fuse switch disconnector has to offer

smartARS pro fuse switch disconnectors are used for energy distribution and to provide protection against the effects of short circuits and overloads in three-phase AC circuits. They are designed for direct installation on horizontal or vertical busbar systems as three-phase vertical units. smartARS pro fuse switch disconnectors meet the technical requirements of Polish and European power companies.

Remote monitoring

Option to change the direction from top to bottom

Designed for installation on a 185mm busbar system

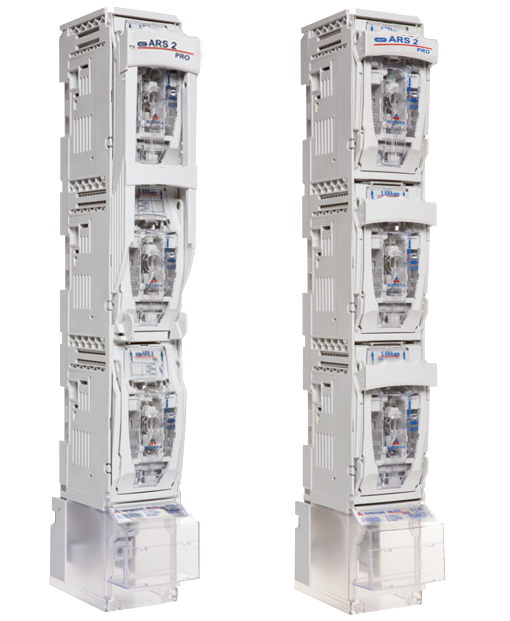

Versions


Installation on a 185 mm busbar system

1-POLE SWITCHING - each phase independently



Installation on a 185 mm busbar system

3-POLE SWITCHING - all phases simultaneously



  • smartARS 2-1-V pro cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 2-1-M pro cable connection: M12 nuts
  • smartARS 2-1-2V pro cable connection: 2V-type terminals; double V-clamp 240mm²



  • smartARS 2-6-V pro cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 2-6-M pro cable connection: nuts 5.7
  • smartARS 2-6-2V pro cable connection: 2V-type terminals; double V-clamp 240mm²






Applications of the smartARS 2 pro fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low-voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
