Rozłącznik izolacyjny smartARS 2 pro IP20

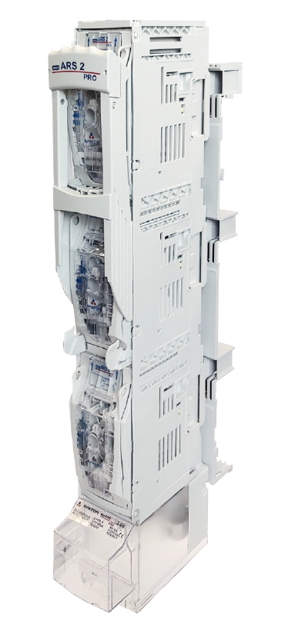

smartARS 2 pro IP20

Fuse switch disconnectors with a hook adapter for IP20 busbar installation

  • Suitable for NH1 (250 A) and NH2 (400 A) size of fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

  • Two-pole contact arrangement

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the smartARS 2 pro IP20 fuse switch disconnector has to offer

The smartARS 2 pro fuse switch disconnector allows you to fit a hook terminal adapter for the installation of switch disconnectors on an IP20 bridge. If the direction of the outlet is changed from the top, the hook and the plate must be rotated by 180° in accordance with the instructions.

Easy installation

Option to change the direction from top to bottom

Designed for installation on a 185mm busbar system

Versions



Designations

  • smartARS 2-1-V-H pro cable connection: V-type terminals: V-clamp 240mm²
  • smartARS 2-1-M-H pro cable connection: M12 nuts

Applications of the smartARS 2 pro IP20 fuse switch disconnectors

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
