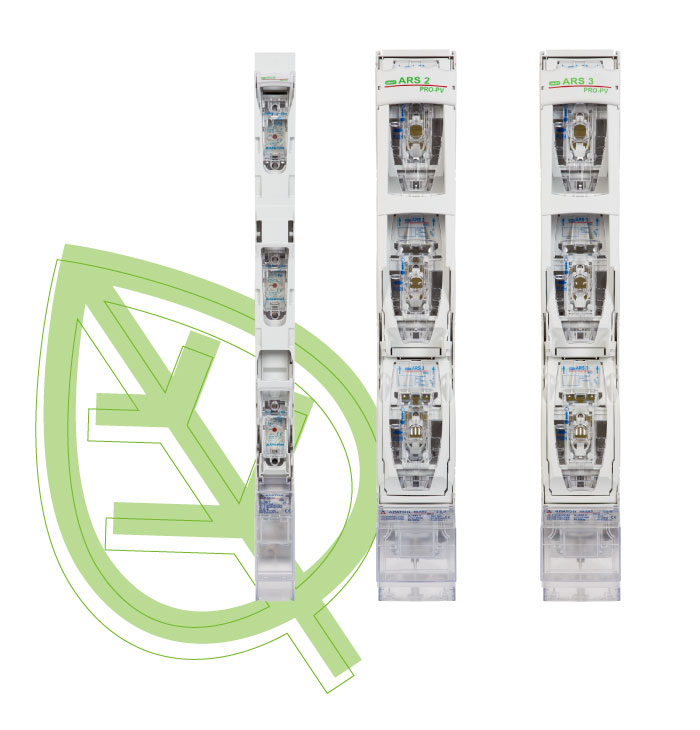

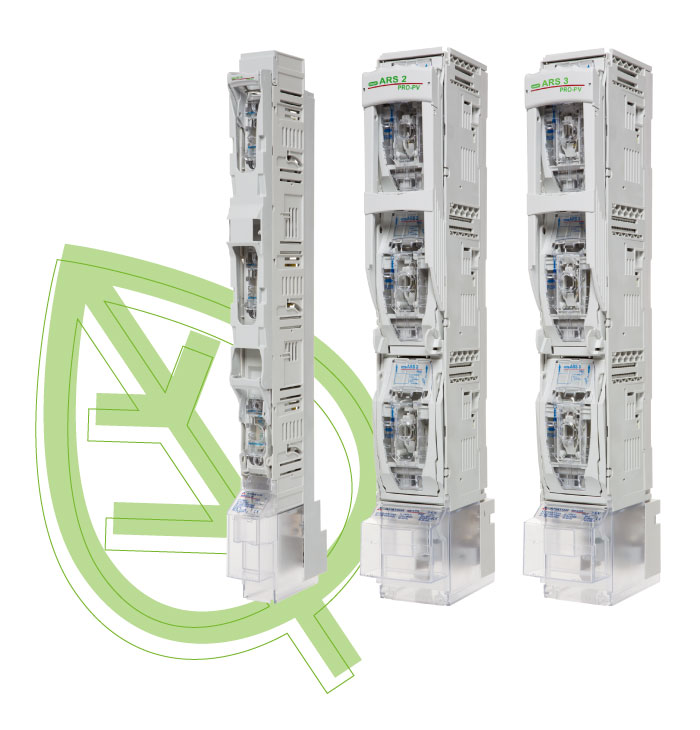

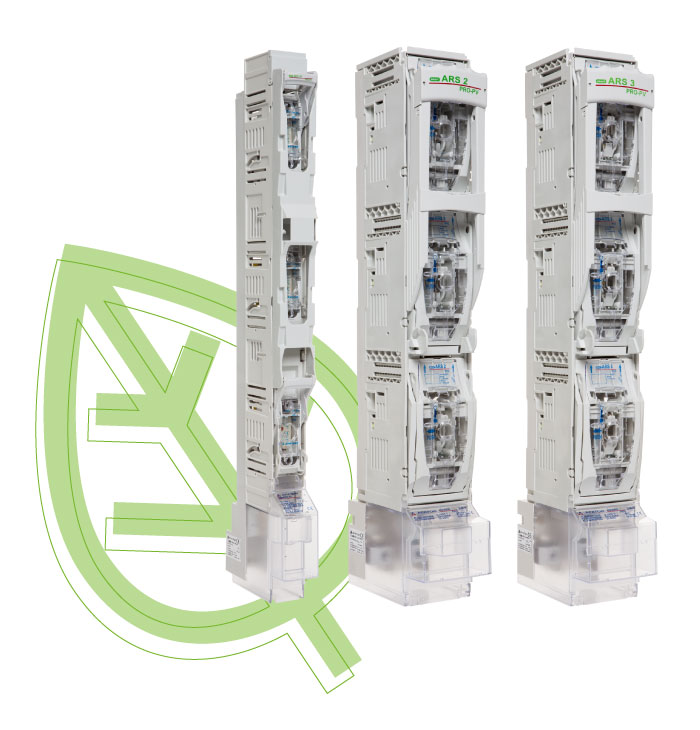

smartARS pro-PV

Fuse switch disconnector

  • They protect circuits with new-generation 800 V AC fuse switch disconnector

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the smartARS pro-PV switch disconnector has to offer

The smartARS pro-PV range of fuse switch disconnectors has been designed for use in photovoltaic systems. Thanks to the use of smartARS pro-PV, solar panels and the new generation of disconnectors can be safely installed under an AC load of 800 V. High-quality materials and Apator’s years of experience in the energy distribution sector ensure an excellent cost-benefit ratio.

Two-pole contact arrangement

Designed for installation on a 185mm busbar systems

Versions



Installation on a 185 mm busbar system,
3-POLE SWITCHING - all phases simultaneously



  • smartARS 00-3 pro-PV cable connection: bridge terminals (s) 4–70 mm² and M8 screw terminals
  • smartARS 00-3-V pro-PV cable connection: V-type terminals; V-clamp 25–150 SW
  • smartARS 2-6-V pro-PV cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 3-6-V pro-PV cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 2-6-M pro-PV cable connector: M12 nuts
  • smartARS 3-6-M pro-PV cable connection: M12 nuts
  • smartARS 2-6-2V pro-PV cable connection: 2V terminals; double V-clamp 240mm²
  • smartARS 3-6-2V pro-PV cable connection: 2V-type terminals; double V-clamp 240mm²

Applications of the smartARS pro-PV fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
