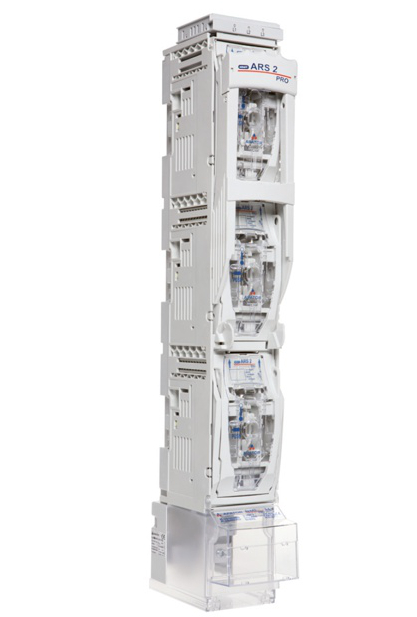

smartARS-X pro

Fuse switch disconnector with fuse monitoring module

  • Fuse link monitoring system - SMW version

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

  • Two-pole contact arrangement

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the smartARS-X pro fuse switch disconnector has to offer

The smartARS-X pro fuse switch disconnector can be fitted with a device that indicates the current status of the fuse links. Information regarding blown fuses, correct operation or a loss of voltage is indicated by corresponding LED lights or can be transmitted to any protection automation system via potential-free contacts.

A device equipped with a CT/VT analyser interface module

SMW module communication output – normally open (NO) contact

Option to change the direction from top to bottom

Designed for installation on a 185mm busbar systems

Versions



smartARS 00-X pro switch disconnectors – 160 A
Installation on a 185mm busbar system
SINGLE-POLE SWITCHING - each phase independently



Installation on a 185 mm busbar system,
3-POLE SWITCHING - all phases simultaneously




  • smartARS 00-1-V-X-E pro cable connection: V-type terminals; V-clamp 25-150 SW + hook terminals





  • smartARS 00-3-V-X pro cable connection: V-type terminals; V-clamp 25–150 SW




smartARS 2-X pro switch disconnectors - 400 A
Installation on a 185mm busbar system,
SINGLE-POLE SWITCHING - each phase independently



Installation on a 185mm busbar system,
3-POLE SWITCHING - all phases simultaneously






  • smartARS 2-1-V-X pro cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 2-1-M-X pro cable connection: M12 nuts
  • smartARS 2-1-2V-X pro cable connection: 2V-type terminals; double V-clamp 240mm²





  • smartARS 2-6-V-X pro cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 2-6-M-X pro cable connection: M12 nuts
  • smartARS 2-6-2V-X pro cable connection: 2V-type terminals; double V-clamp 240mm²





smartARS 3-X pro switch disconnectors - 630 A
Installation on a 185mm busbar system,
1-POLAR SWITCHING - each phase independently
 		Installation on a 185mm busbar system,
3-POLE SWITCHING - all phases simultaneously


  • smartARS 3-1-V-X pro cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 3-1-M-X pro cable connection: M12 nuts
  • smartARS 3-1-2V-X pro cable connection: 2V-type terminals; double V-clamp 240mm²



  • smartARS 3-6-V-X pro cable connection: V-type terminals; V-clamp 240mm²
  • smartARS 3-6-M-X pro cable connection: M12 nuts
  • smartARS 3-6-2V-X pro cable connection: 2V-type terminals; double V-clamp 240mm²





Insert burnout module



Description of the insert condition monitoring module

Rated parameters



  • LED lights up green – correct operation, fuse links intact
  • LED lights up red – incorrect operation, fuse links blown
  • LED flashes red – voltage present at the output terminal (fuse links blown)
  • LEDs are not lit – no power supply














  • Test voltage for connection cable testing: 2.5 kV DC
  • Minimum operating voltage 200 V
  • Maximum operating voltage 450 V
  • Uimp surge voltage on burnt-out insert 4 kV
  • Uimp between phases 4 kV
  • Uimp between main circuit/relay contacts 3.5 kV
  • Permissible temperature range -40...+85°C
  • Rated insulation voltageUi 1000 V







Applications of the smartARS-X pro fuse switch disconnector

Transformer stations

The use of fuse switch disconnectors in transformer substations ensures the highest standards of operational safety. The design of the switchgear allows for rapid disconnection of the power supply. Furthermore, its resistance to harsh conditions and temperature fluctuations means the equipment does not require frequent servicing, thereby reducing operating costs.

Low voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.
