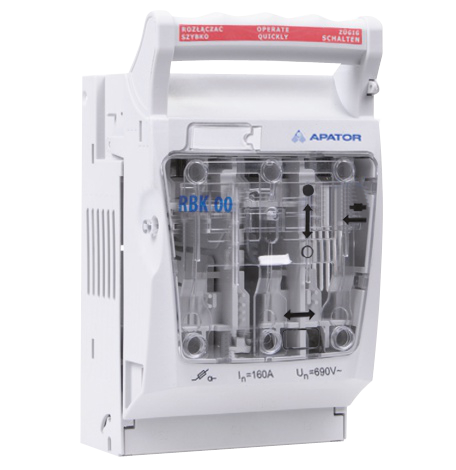

Rozłącznik izolacyjny RBK 00

RBK 00

Fuse switch disconnector

  • 160 A, 690 V

  • Suitable for NH00 size fuse links

  • A flame-proof, self-extinguishing plastic with a V2 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RBK 00 fuse switch disconnector has to offer

RBK fuse switch disconnectors are designed for energy distribution and equipment protection against the effects of short circuits and overloads by means of industrial fuse links.

Fuse switch disconnector designed for panel installation

Option to seal the fuse switch disconnector

The ability to release and remove fuse links without having to touch them

Inspection holes for checking the condition of the fuse

Versions



RBK 00/160 A
  • RBK 00 for connection of round conductors. S-bridge
  • RBK 00-M for connection of conductors with lug screw terminals
  • RBK 00-V for connection of sector-shaped conductors, V-terminals
  • RBK 00-W for connection of round conductors enghtened terminal shrouds
  • RBK 00-M-W for connection of conductors with lug terminals lenghtened terminal shrouds
  • RBK 00-V-W for connection of sector-shaped conductors lenghtened terminal shrouds

Applications of the RBK 00 fuse switch disconnector

Low-voltage switchgear

RBK type horizontal fuse switch disconnectors are a solution designed to optimise space in LV switchgear. Thanks to their compact design, they facilitate the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

RBK type horizontal fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

RBK type horizontal switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
