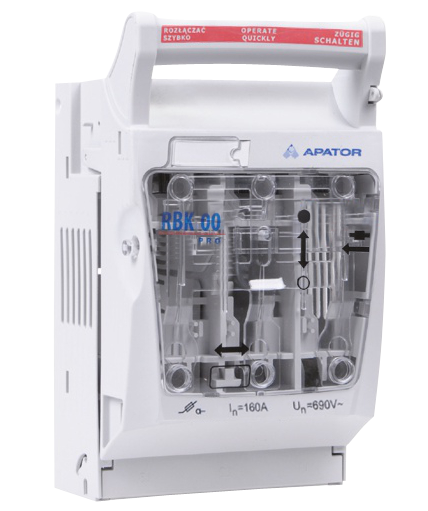

Rozłącznik izolacyjny RBK 00 pro

RBK 00 pro

Fuse switch disconnector

  • 160 A, 690 V

  • Suitable for NH00 size fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RBK 00 pro fuse switch disconnector has to offer

RBK pro type horizontal fuse switch disconnectors are designed for energy distribution and equipment protection against the effects of short circuits and overloads using industrial fuse links.

Suitable for installation on: a mounting plate, DIN rail/TH35 rail or a 60mm busbar system

Option to seal the fuse switch disconnector

The ability to release and remove fuse links without having to touch them

Inspection holes for checking the condition of the fuse link

Versions



RBK 00 pro/160 A

Installation on a mounting plate

Installation on double DIN rails / TH-35 rails
  • RBK 00 pro for connection of round conductors, S-bridge
  • RBK 00 pro-M for connection of  conductors with lug screw terminals
  • RBK 00 pro-V for connection of sector-shaped conductors
  • RBK 00 pro-W for connection of round conductors enghtened terminal shrouds
  • RBK 00 pro-M-W for connection of round conductors with lug terminals, lenghtened terminal shrouds
  • RBK 00 pro-V-W for connection of sector-shaped conductors, lenghtened terminal shrouds
  • RBK 00 pro-E-125mm double DIN rails / TH35 rails with spacing of 125mm
  • RBK 00 pro-E-150mm double DIN rails / TH35 rails with spacing of 150mm















Applications of the RBK 00 pro fuse switch disconnector

Low voltage switchgear

RBK 00 pro type horizontal fuse switch disconnectors are a solution designed to optimise space in LV switchgear. Thanks to their compact design, they facilitate the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

RBK 00 pro type horizontal fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

RBK 00 pro type horizontal fuse switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
