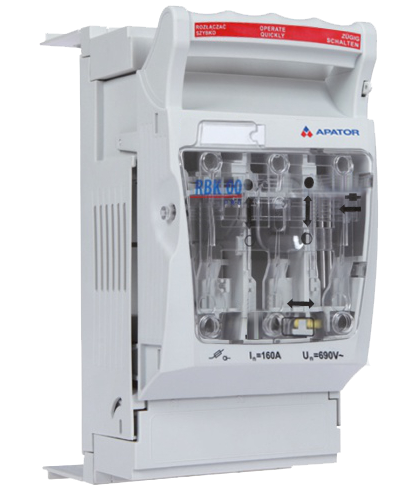

Rozłącznik izolacyjny RBK 00 pro-S

RBK 00 pro-S

Fuse switch disconnector

  • 160 A, 690 V

  • Suitable for NH 00 size fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RBK 00 pro-S fuse switch disconnector has to offer

RBK pro-S type horizontal fuse switch disconnectors are designed for energy distribution and equipment protection against the effects of short circuits and overloads using industrial fuse links.

Fuse switch disconnectors for 60 mm busbar system

The shielding system provides protection against contact

Installation with a cover: 32mm and 70mm

Quick installation on busbars using the hook terminals mounted into the fuse switch disconnectors

Top / bottom cable terminal

Model

RBK 00 pro-S  Installation on a 60mm busbar system
  • RBK 00 pro-SG-M cable terminal - top, for connection of conductors with lug M8 screw terminals
  • RBK 00 pro-SD-M cable terminal - bottom, for connection of conductors with lug M8 screw terminals
  • RBK 00 pro-SG-R cable terminal - top, for connection of conductors with bare ends, frame clamps
  • RBK 00 pro-SD-R cable terminal - bottom, for connection of conductors with bare ends, fram clamps


Applications of the RBK 00 pro-S fuse switch disconnector

Low-voltage switchgear

RBK 00-S type horizontal fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

RBK 00-S type horizontal fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

RBK 00-S type horizontal fuse switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
