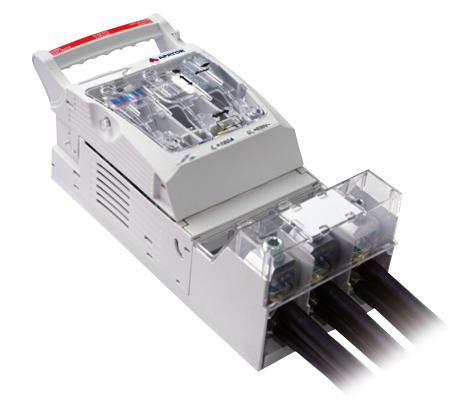

Rozłącznik izolacyjny RBK 00 pro-V120

RBK 00 pro-V120

Fuse switch disconnector

  • 160 A, 690 V

  • Suitable for NH00 size fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Find out what the RBK 00 pro-V120 fuse switch disconnector has to offer

RBK pro-V120 type horizontal fuse switch disconnectors are designed for energy distribution and equipment protection against the effects of short circuits and overloads using industrial fuse links.

Fuse switch disconnector designed for mounting plate installation

Option to seal the fuse switch disconnector

The ability to release and remove fuse links without having to touch them

Inspection holes for checking the condition of the fuse link

Additional cover for the cable connection

Versions



RBK 00 pro - V120 - installation mounting plate

  • RBK 00 pro - V120 for connection of conductors with bare ends, top terminals -S-bridge terminals, bottom terminals - V-terminals
  • RBK 00 pro - V120 for connection of conductors with bare ends, top terminals - lug M8 screw terminals, bottom terminals - V-terminals
  • RBK 00 pro - P for connection of conductors with bare ends, top terminals -S-bridge terminals, bottom terminals - Prisma terminals
  • RBK 00 pro - PM for connection of conductors with bare ends, top terminals - lug M8 screw terminals, bottom terminals - Prisma terminals
  • RBK 00 pro 2 x V120 for connection of conductors with bare ends, top terminals -S-bridge terminals, bottom terminals - double 2V120 terminals
  • RBK 00 pro 2 x V120 for connection of conductors with bare ends, top terminals - lug M8 screw terminals, bottom terminals - double 2V120 terminals

Applications of the RBK 00 pro-V120 fuse switch disconnector

Low voltage switchgear

RBK 00 pro V120 type horizontal fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

RBK 00 pro V120 type horizontal fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

RBK 00 pro V120 type horizontal fuse switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
