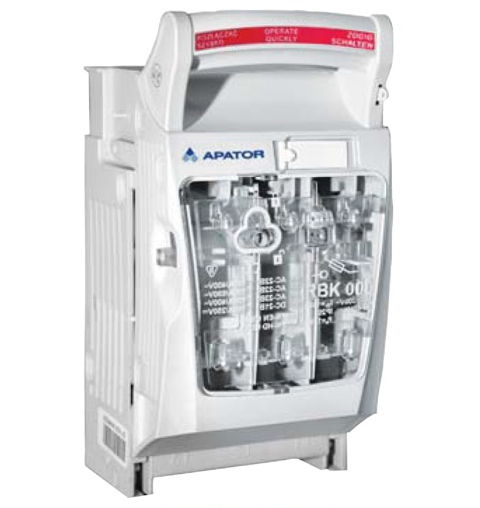

Rozłącznik izolacyjny RBK 000 pro

RBK 000 pro

Fuse switch disconnector

  • 160 A, 690 V

  • Suitable for NH000 size fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RBK 000 pro fuse switch disconnector has to offer

Installation is possible on a mounting plate, DIN rail / TH35 rail or on 60mm busbar system

Option to seal the fuse switch disconnector

The ability to release and remove fuse links without having to touch them

Inspection holes for checking the condition of the fuse link

Versions



RBK 000 pro/160 A – installation on mounting plate



Installation on a 60 mm busbar system
  • RBK 000 pro for connection of round conductors, S-bridge
  • RBK 000 pro-E for connection of round conductors, possible installation on DIN rail or TH-35 rail
  • RBK 000 pro-M for connection of round conductors with lug screw terminals
  • RBK 000 pro-M-E for connection of round conductors with lug screw terminals, possible installation on DIN rail or TH-35 rail
  • RBK 000 pro-W for connection of round conductors, lenghtened terminal shrouds
  • RBK 000 pro-W-M for connection of round conductors, with lug terminals, lenghtened terminal shrouds
  • RBK 000 pro-SD cable terminal - bottom, for connection of round conductor, S-bridge
  • RBK 000 pro-SG cable terminal - top, for connection of round conductor, S-bridge
  • RBK 000 pro-SD-M cable terminal - bottom, for connection of conductor with lug terminals
  • RBK 000 pro-SG-M cable terminal - top, for connection of conductor with lug terminals








Applications of the RBK 000 pro fuse switch disconnector

Low voltage switchgear

RBK type horizontal fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

RBK type horizontal fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

RBK type horizontal fuse switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
