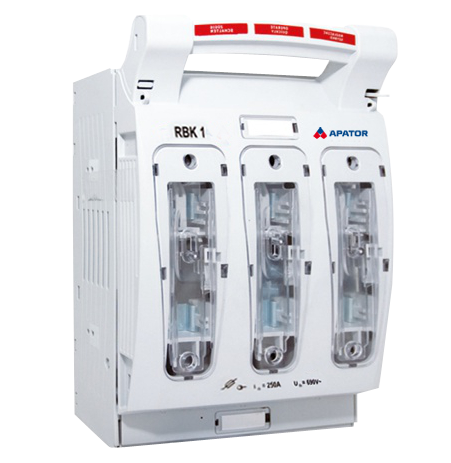

RBK 1

Fuse switch disconnector

  • 250 A, 690 V

  • Suitable for NH1 size fuse links

  • A flame-proof, self-extinguishing plastic with a V2 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RBK 1 fuse switch disconnector has to offer

RBK type horizontal fuse switch disconnectors are designed for energy distribution and to protect electrical equipment against the effects of short circuits and overloads by means of industrial fuse links.

Fuse switch disconnector designed for panel installation

The option to seal the fuse switch disconnector with a padlock or a seal

The ability to release and remove fuse links without having to touch them

Inspection holes for checking the condition of the fuse link

Versions



RBK 1/250 A
  • RBK 1 for connection of round conductors, S-bridge terminals
  • RBK 1-M for connection of conductors with lug screw terminals
  • RBK 1-V for connection of sector-shaped conductors, V-terminals
  • RBK 1 VG for connection of round conductors, top terminals - V-type terminals, bottom terminals - S-bridge terminals
  • RBK 1 VG-M for connection of round conductors, top terminals – V-type terminals, bottom terminals – screw terminals
  • RBK 1 VD for connection of round conductors, top terminals – S-bridge terminals, bottom terminals – V-type terminals
  • RBK 1 VD-M for connection of round conductors, top terminals – screw terminals, bottom terminals – V-type terminals

Applications of the RBK 1 fuse switch disconnector

Low voltage switchgear

RBK type horizontal fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

RBK type horizontal fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

RBK type horizontal fuse switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
