Rozłącznik izolacyjny RBK pro-X, RBK pro-XT

RBK pro-X, RBK pro-XT

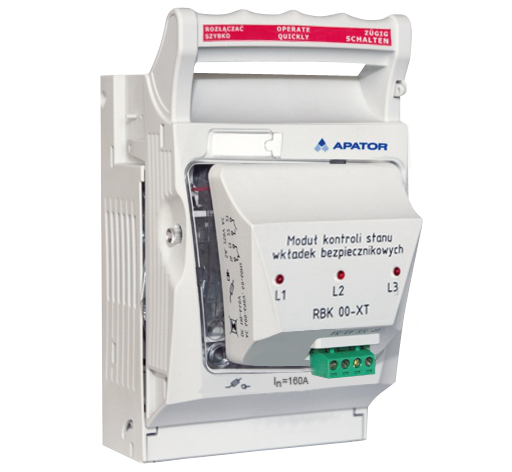

Fuse switch disconnector with fuse monitoring module

  • Electronic module for monitoring the status of fuse links

  • A wide range of designs depending on the mounting method

  • Versions depending on the power supply direction of the unit

Ask about this product

We strive to respond to every message within 24 hours (business days).

Versions



  • RBK 00 pro-XT for installation on mounting plate, power supply connected to top cable terminal
  • RBK 00 pro-X for installation on mounting plate, power supply connected to top/bottom cable terminal
  • RBK 00 pro-SG-X 60 for installation onto 60mm busbar system, top cable terminals, busbar power supply
  • RBK 00 pro-SD-XT 60 for installation onto 60mm busbar system, bottom cable terminals, busbar power supply
  • RBK 1 pro-XT for installation on mounting plate, power supply connected to top cable terminal
  • RBK 1 pro-X for installation on mounting plate, power supply connected to top/bottom cable terminal
  • RBK 1 pro-SG 60-X for installation onto 60mm busbar system, top cable terminals, busbar power supply
  • RBK 1 pro-SD 60-XT, for installation onto 60mm busbar system, bottom cable terminals, busbar power supply
  • RBK 1 pro-SG 100-X for installation onto 100mm busbar system, top cable terminals, busbar power supply
  • RBK 1 pro-SD 100-XT for installation onto 100mm busbar system, bottom cable terminals, busbar power supply
  • RBK 2 pro-XT for installation on mounting plate, power supply connected to top cable terminal
  • RBK 2 pro-X for installation on mounting plate, power supply connected to top/bottom cable terminal
    RBK 2 pro-SG 60-X for installation onto 60mm busbar system, top cable terminals, busbar power supply
  • RBK 2 pro-SD 60-XT, for installation onto 60mm busbar system, bottomcable terminals, busbar power supply
  • RBK 2 pro-SG 100-X for installation onto 100mm busbar system, top cable terminals, busbar power supply
  • RBK 2 pro-SD 100-XT for installation onto 100mm busbar system, bottom cable terminals, busbar power supply



Rated parameters



Operating voltage AC - 400–690 V, 40–60 Hz
Relay contact rating: 5 A, 250 V ~


NOTE!
1. Fuse links with non-insulated holders















Electronic fuse monitoring module - description
  • L1, L2, L3 diodes are flashing – all thre phases are supplied, all fuse links are operational; relay contact: [21..22] - closed; [13..14] - opened
  • L1, L2, L3 diodes are blinking– all thre phases are supplied, fuse links operated; relay contact: [21..22] - opened; [13..14] - closed
  • L1, L2, L3 diodes are off – two or more phases are not supplied or fuse links are removed; relay contacts:[13..14] – opened; [21..22] – closed
RBK pro X parametry

Applications of the RBK pro-X and RBK pro-XT fuse switch disconnectors

Low-voltage switchgear

RBK pro-X or RBK pro-XT type horizontal fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

RBK pro-X or RBK pro-XT type horizontal fuse switch disconnectorensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

RBK pro-X or RBK pro-XT type horizontal fuse switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
