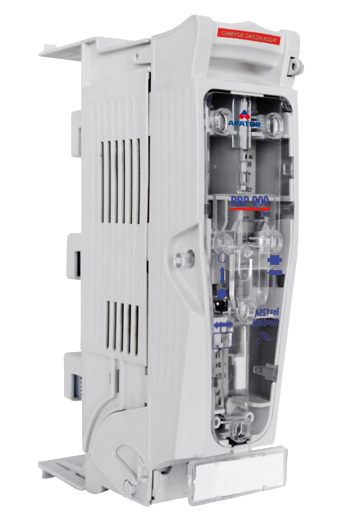

Rozłącznik izolacyjny RBP 000 pro

RBP 000 pro

Fuse switch disconnector

  • 125 A, 690 V

  • Suitable for NH000 size fuse links

  • A flame-proof, self-extinguishing plastic with a V0 flammability class

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RBP 000 pro fuse switch disconnector has to offer

RBP 000 Pro fuse switch disconnector, suitable for installation on a mounting plate, a double DIN rails / TH35 rails

RBP 000 pro-S fuse switch disconnector, designed for installation on a 60mm busbar system

The shielding system provides protection against contact

Can be installed with a 32mm or 70mm deep cover

Quick installation of busbars using the hook terminals built into the fuse switch disconnectors

Versions



RBP 000 pro


Installation on mounting plate




Installation on double DIN rails / TH-35 rails

  • RBP 000 pro for connection of round conductors



  • RBP 000 pro-E-125 mm double DIN rail with spacing 125mm
  • RBP 000 pro-E-150 mm double DIN rail with spacing 150mm


RBP 000 pro-S, installation on a 60 mm busbar system
  • RBP 000 pro-SG cable terminal top, for connection of conductors with bare ends
  • RBP 000 pro-SD cable terminal bottom, for connection of conductors with bare ends





Applications of the RBP 000 pro fuse switch disconnector

Low-voltage switchgear

The fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the arrangement of equipment whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be neatly and safely routed, which speeds up installation and makes future inspections easier.

Cable connectors

The fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

The fuse switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
