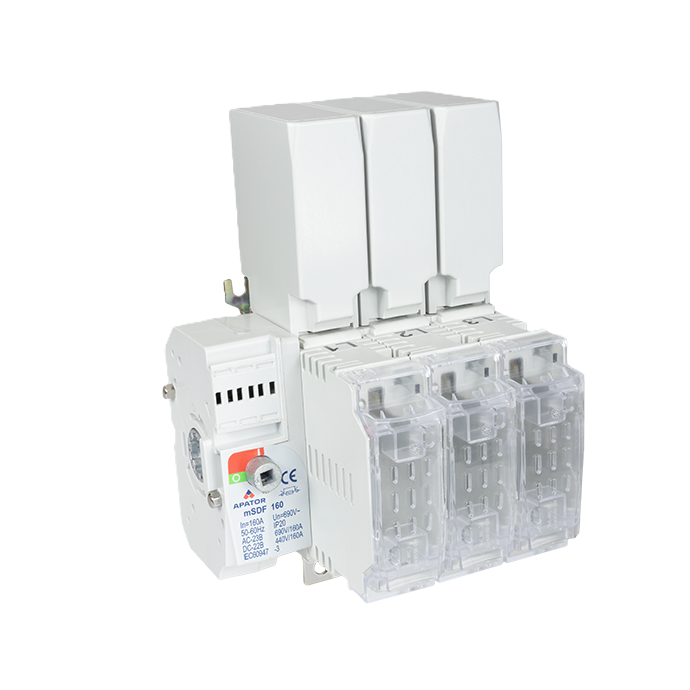

mSDF 160
Fuse switch disconnector COMPASS
-
Complete safety and easy installation
-
Lid lock to prevent removal of fuse links when in the ‘ON’ position
-
V0 self-extinguishing insulation materials
Find out what the mSDF 160 fuse switch disconnector has to offer
The mSDF 160 is an isolating fuse switch disconnector with fuses from the COMPASS range, designed for fuses of size NH 00 up to 160A. The COMPASS range of isolating disconnectors offers a new level of safety and user-friendliness. The name COMPASS is a combination of the words ‘COMPact’ and ‘ASSembly’, which encapsulate its key features.
A roller passing through the front and the drive side
Capability to connect 3 miniature switches directly (additional switches can be stacked)
Door locking during operation – the ability to deliberately release the lock using a tool
Self-cleaning dynamic contacts
High mechanical endurance and electrical durability
High short-circuit and switching capacity
A double, safe insulation gap in each current path of the fuse switch disconnector
Complete isolation of the fuse links in the ‘OFF’ position
A wide range of accessories
