Rozłącznik izolacyjny RA 1250 A

RA 1250

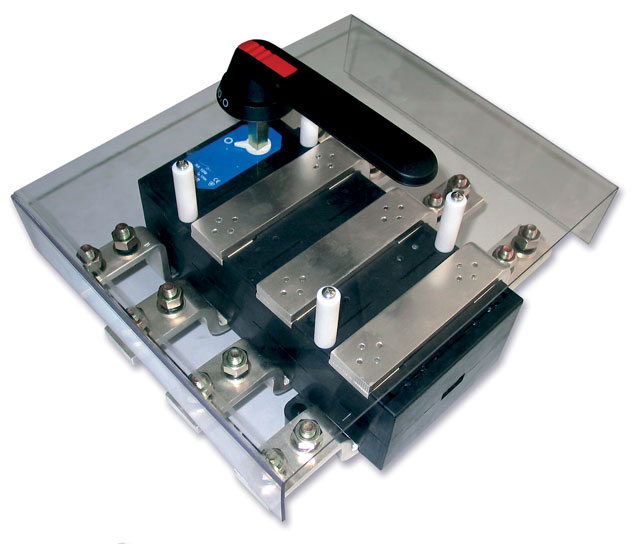

RA 1250 A isolating switch disconnector

  • Mounted into switchgear applications

  • A double insulation gap in each current path

  • Silver-plated contacts on the current tracks

Ask about this product

We strive to respond to every message within 24 hours (business days).

Find out what the RA 1250 isolating switch disconnector has to offer

Independent manual drive – flashing independent of the switching speed

Complete safety in use and easy installation

V0 self-extinguishing insulation materials (according to UL94)

Self-cleaning non-contact contacts

High electrical and mechanical durability

High short-circuit and switching capacity

A wide range of accessories

Application


Operating conditions


The R series isolating switch disconnectors are designed for energy distribution, the connection of electrical equipment and the protection of such equipment against the effects of short circuits and overloads in three-phase networks. They can be used as:

  • main and feeder switch disconnectors in switchgear,
  • isolating switches,
  • switch disconnectors for controlling and protecting electric motors and other AC equipment.









The isolating switch disconnectors are designed for installation in enclosed spaces free from dust, corrosive and explosive gases:

  • in temperate, tropical (T) and marine (M) climates,
  • at ambient temperatures ranging from -25°C to +55°C,
  • at altitudes up to 2000 m above sea level.


They may be installed outdoors in enclosures (cabinets) with IP34 protection degree or higher.
