SPV RM with power monitoring function

Universal PV plant controller

The ability to connect, monitor, control and regulate all equipment on the farm using a single device
Remote diagnostics, parameterisation and updating of software and configurations
Wide compatibility and integration thanks to support for multiple communication protocols and protocol conversion functions

Find out what the SPV RM controller has to offer

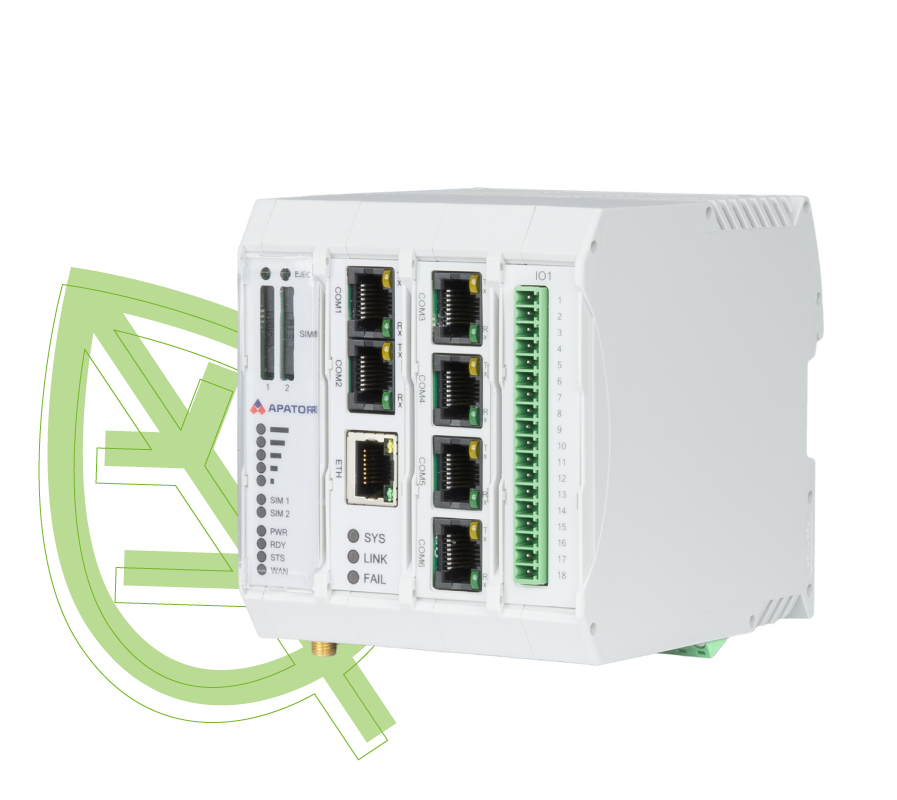

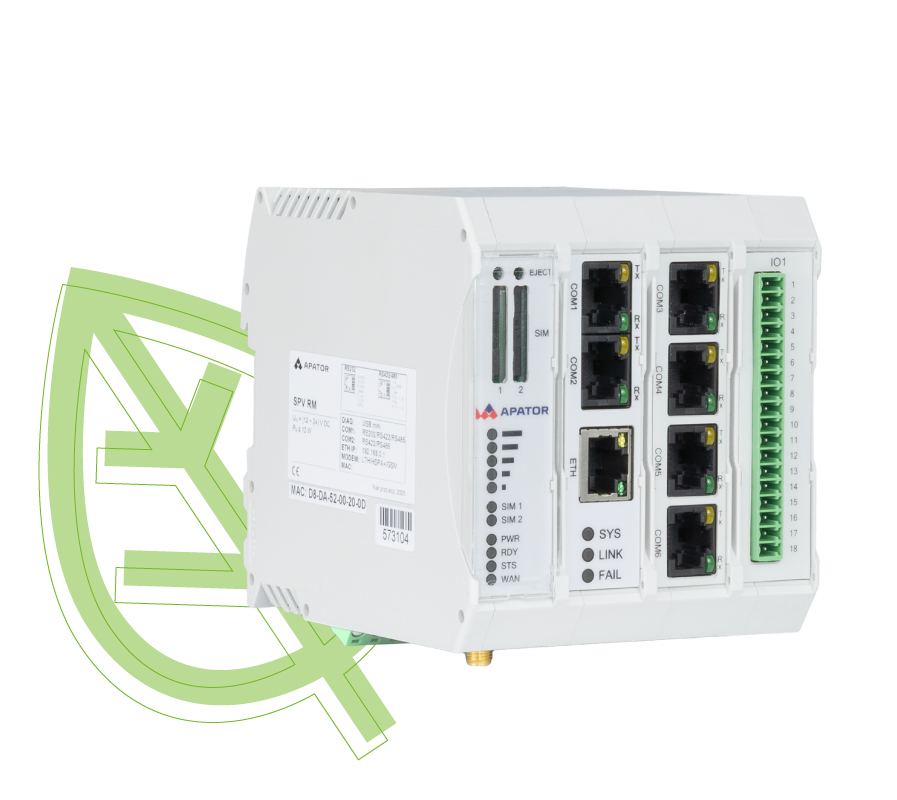

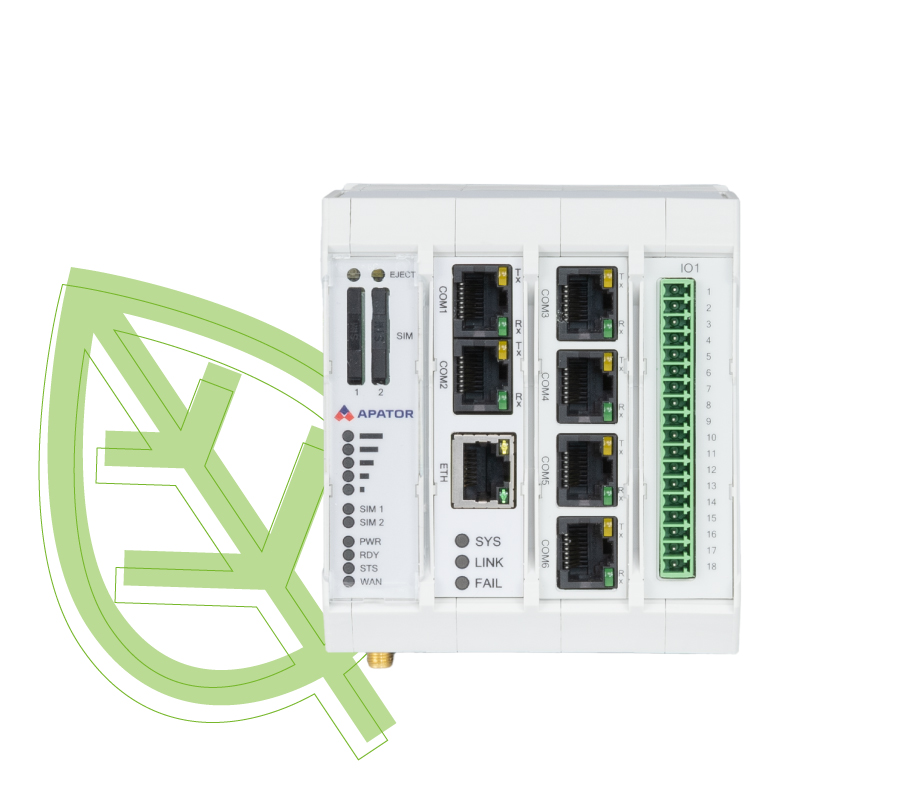

The SPV RM is a universal fotovoltaic farm controller. The device acts as a telemechanics controller, data concentrator, communication module and regulator of the facility’s operating parameters.
The primary role of the SPV RM controller is to enable the monitoring of the power generation source’s operating parameters via a direct connection to data loggers, automation systems, analysers, etc.
The SPV RM controller can work with data loggers from leading manufacturers and with other data logger-type devices equipped with mechanisms for managing the operating parameters of inverters installed at the facility.

P adjustment – a percentage value relative to the rated P or an absolute value in kW

Q control – cosφ value

Q control – activation of the Q(U) characteristic

Built-in LTE/HSPA+/GSM mobile network modem

A built-in 10Base T/100Base-TX Ethernet port designed to connect the module to an external router, with optional connection authentication in accordance with the IEEE 802.1x standard

Remote diagnostics, parameterisation, and software and configuration updates

Built-in HTTP/HTTPS server, SSHv2 server and SNMPv1/2c/3 agent

Authentication of network services using X.509 digital certificates

SPV – Certificate of compliance with:

The Network Code
Conditions and procedures for the use of certificates in the process of connecting power generation units to electricity grids (PTPiREE)
Requirements for the connection of generation units to the grid (NC RfG)
General application requirements arising from Commission Regulation (EU) 2016/631 of 14 April 2016

Model		SPV RM with power guard function
Power supply	Power supply voltage	12 – 24 V DC
	Output voltage	12 V DC max. 50 mA
	Power consumption	≤ 5 W
Modem	Frequency bands	FDD LTE: 700/800/900/1800/2100/2600 MHz WCDMA (3G): 900/2100 MHz GSM (2G): 900/1800 MHz
	Data transmission modes	LTE/HSPA+/UMTS/EDGE/GSM
	SIM card slot	2 x mini-SIM (2FF)
	Antenna connector	SMA
Connectivity	Communication interfaces	1 x Ethernet with RJ45 socket 1 x RS-485/RS-422 with RJ45 socket 1 x RS-232/RS-485/RS-422 with RJ45 socket 4 x RS-232/RS-485/RS-422 with RJ45 socket
	Communication protocols	DNP3, MST, MODBUS, IEC-60870-5-101/104, TETRA-PEI, TCP, UDP
	Signalling inputs and outputs	16 alarm outputs 6 control outputs
Enclosure	Dimensions (HxWxD)	99 x 90 x 114 mm
	Weight	180 g
	Material	PA 6,6 (flame retardant class V0 according to UL 94) in RAL 7035 (light grey)
	Mounting method	to TS-35 rail
	Operating environment	enclosed
	Degree of protection according to PN EN 60529	IP20
Operating conditions	Operating temperature	from -20°C to +55°C
	Storage temperature	from -20°C to +70°C
	Relative humidity	up to 90%
	Operating environment	enclosed
The SPV RM controller is designed for cooperation with the following devices:	Standard MV/LV network analyzers	Lumel ND10, ND20, ND30, ND45, NR30 Socomec Diris A10, A40, A60 A-EBERLE PQI-DA-smart Lovato Electric DMG300, DMG7000 Siemens PAC3200 Phoenix Contact EEM-MA770
	Standard photovoltaic inverter data loggers	Huawei SmartLogger Sungrow Logger1000 SolarEdge SolarLog GoodWe EZLogger SMA DataManager Advant SuperNode
	The SPV RM controller can work with other devices not listed in the compatibility list, subject to prior agreement. The ability for cooperation with another device is subject to two conditions: the device must have active and reactive power control functions and power factor control implemented it is necessary to provide the device connectivity protocol documentation in advance
The SPV RM controller has been designed and manufactured in accordance with the guidelines of Directives 73/23/EEC (LVD) and 89/336 (EMC). Furthermore, the SPV RM device has been designed in accordance with the PN-EN 50091-2 and PN-EN 61010-1:2011 standards.
