UG G25

The gas meters can be used for measurement of:

Natural gas
City gas
Propane-butane gas

Residential and commercial gas meters

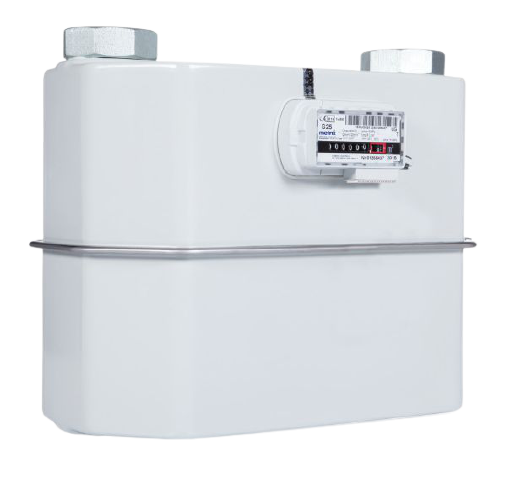

UG 11.2 dm³ gas meter is designed for measurement of gas supplied to commercial consumers where maximum consumption of gas does not exceed 40 m³/h of air density of 1.2 kg/m³. Gas meter is equipped with pulse magnet as standard.

Pulse transmitter can be added at any time (1 imp = 0,01 m³).

Model		UG G25
Maximum flow rate	m³/h	40
Minimum flow rate	m³/h	0,25
Nominal flow rate	m³/h	25
Cyclic volume	dm³	11,2
Max working pressure	bar	0,5
Index max indication	m³/h	999999,99
Starting flow rate	dm³/h	20
Fireproof up to 650 ºC according to EN 1359	bar	0,1

UG G25

Residential and commercial gas meters
