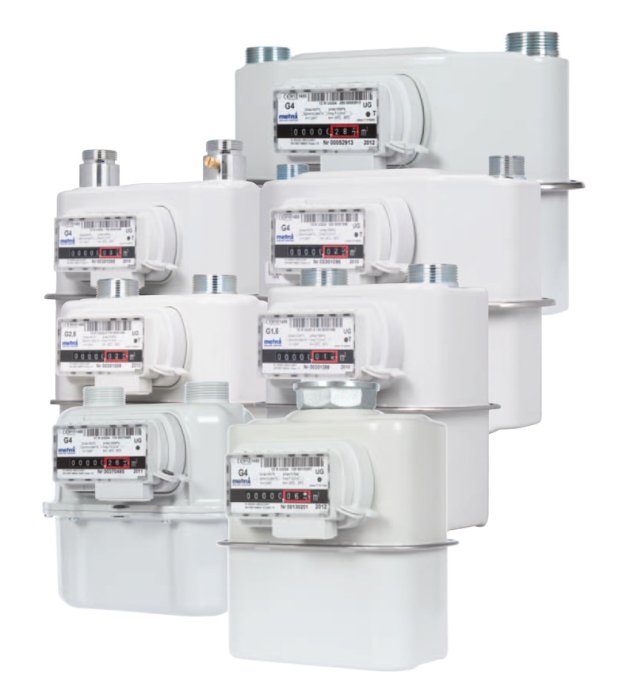

UG series

The gas meters can be used for measurement of:

Natural gas
City gas
Propane-butane gas

Residential and commercial gas meters

UG series gas meters are designed for measurement of gas supplied to appartments where consumption
of gas is equivalent of 2,5 m³/h (G1,6), 4 m³/h (G2,5) and 6 m³/h (G4) of air density of 1,2 kg/m³.
Gas meter is equipped with pulse magnet as standard.

Pulse transmitter can be added at any time (1 imp = 0,01 m³).

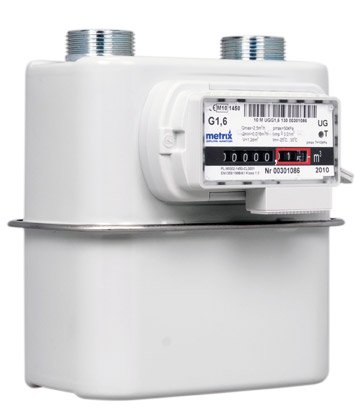

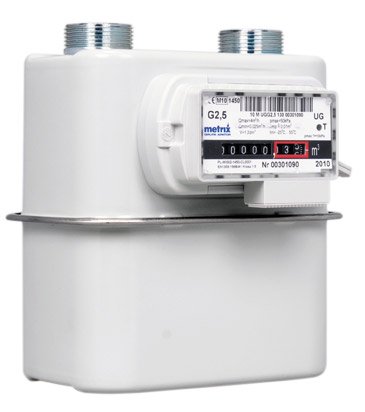

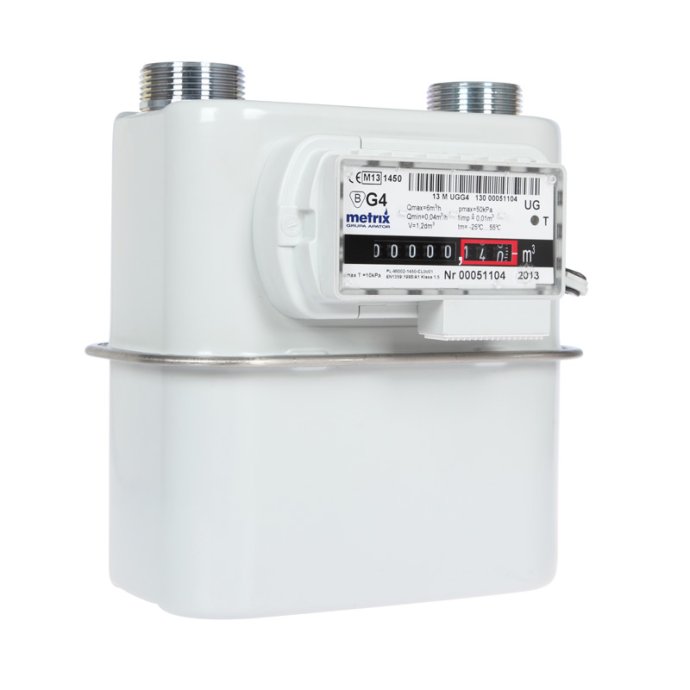

Model		UG-G1,6	UG-G2,5	UG-G4
Maximum flow rate	m³/h	2,5	4	6
Minimum flow rate	m³/h	0,016	0,016/0,025	0,16/0,025/0,040
Nominal flow rate	m³/h	1,6	2,5	4
Cyclic volume	dm³	1,2	1,2	1,2/2,2
Max working pressure	bar	0,5/2*	0,5/2*	0,5/2*
Index max indication	m³/h	99999,999	99999,999	99999,999
Starting flow rate	dm³/h	3	5	5
Fireproof up to 650 ºC according to EN 1359	bar	0,1	0,1	0,1
