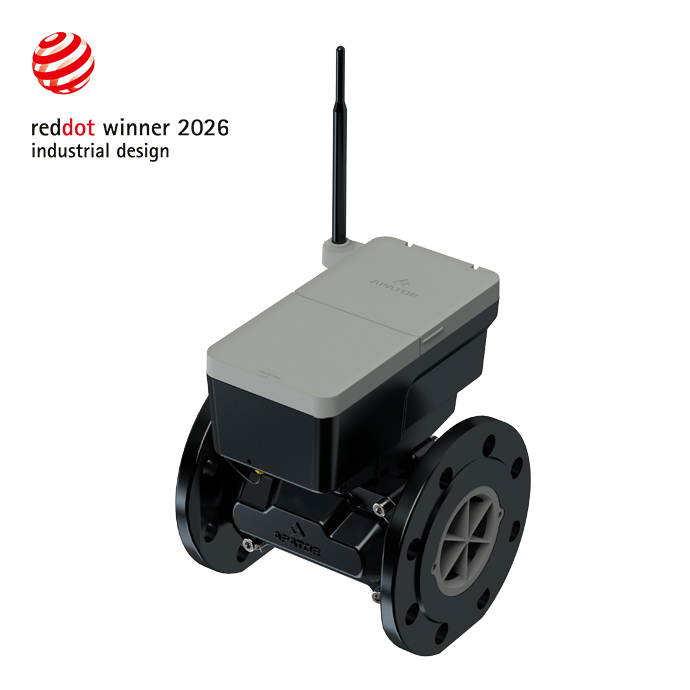

Ultrimis PRO

A new-generation industrial ultrasonic water meter designed to ensure maximum measurement accuracy and reliable operation in demanding operating conditions.

Metrological class up to R1000
Integrated radio communication using LoRaWAN, WM-Bus and NFC standards
Outdoor antenna with an extended feedline

Find out what the Ultrimis PRO water meter has to offer

The Ultrimis PRO is a modern ultrasonic water meter characterised by high measurement accuracy across a wide R1000 range, starting from just 20 l/h. The water meters are resistant to hydraulic shocks and magnetic fields, can be installed in any operating position, and their sealed design (IP68) guarantees reliable and stable operation with minimal energy consumption. An external antenna with an extended range ensures continuous reading even for devices installed in the most difficult locations.
Note: product page currently under construction.
By using Ultrimis PRO, you gain:

Accurate measurement even at low flow rates

Resistance to water hammer and magnetic interference

An ergonomic and robust design for long-term use

An IP68-rated sealed enclosure ensuring long-term reliability

Data reading via NFC, wM-Bus or LoRaWAN

Type	Temperature class		Q³ [m³/h]	DN [mm]	Length [mm]	Weight [kg]
Cold water meters
ULP80 PRO	T50	R1000 R800 R400	40	80	225	14.20
ULP80 PRO			63	80	225	14.20
ULP100 PRO			63	100	250	15.22
ULP100 PRO			100	100	250	15.22

Looking for alternatives?
Discover other water meters in our range

Ultrimis NEO

A new-generation ultrasonic water meter designed for maximum measurement accuracy and reliable operation in demanding operating conditions.

Metrological class up to R2000
Resistance to water hammer and magnetic interference
Very low power consumption and extended battery lifetime

See

JS Smart C+ (for R160)

Single-jet vane-wheel water meter for cold water (up to 50°c)

High-quality Polish JS Smart C+ water meter
Resistance to strong external magnetic fields
Installation: Wireless M-Bus adapters, pulse adapters and M-Bus adapters

See

JS Smart D+ (for R200)

Single-jet vane-wheel water meter for cold water (up to 50°c)

High-quality Polish JS Smart D+ water meter
Measuring range up to R200 – H↑ and an exceptionally high R80 value – for the V position
Low starting flow

See

JS Impero (R315)

Single-jet vane-wheel water meter for cold water (up to 50°c)

High-quality Polish JS Impero water meter (DN50–100)
Standard water meters (Ti.Ir) are designed for optical or inductive reading
Remote readings can be taken using a reed switch transmitter, an optoelectronic transmitter, or the following interfaces: radio, MBus and pulse

See
