IN-LWAN

Universal LoRaWAN IoT Communication Module

Inductive Radio Module with LoRaWAN Protocol
IP68 rating
Automatic Fallback Mode: LoRaWAN – wM-Bus

Discover the features of the IN-LWAN module

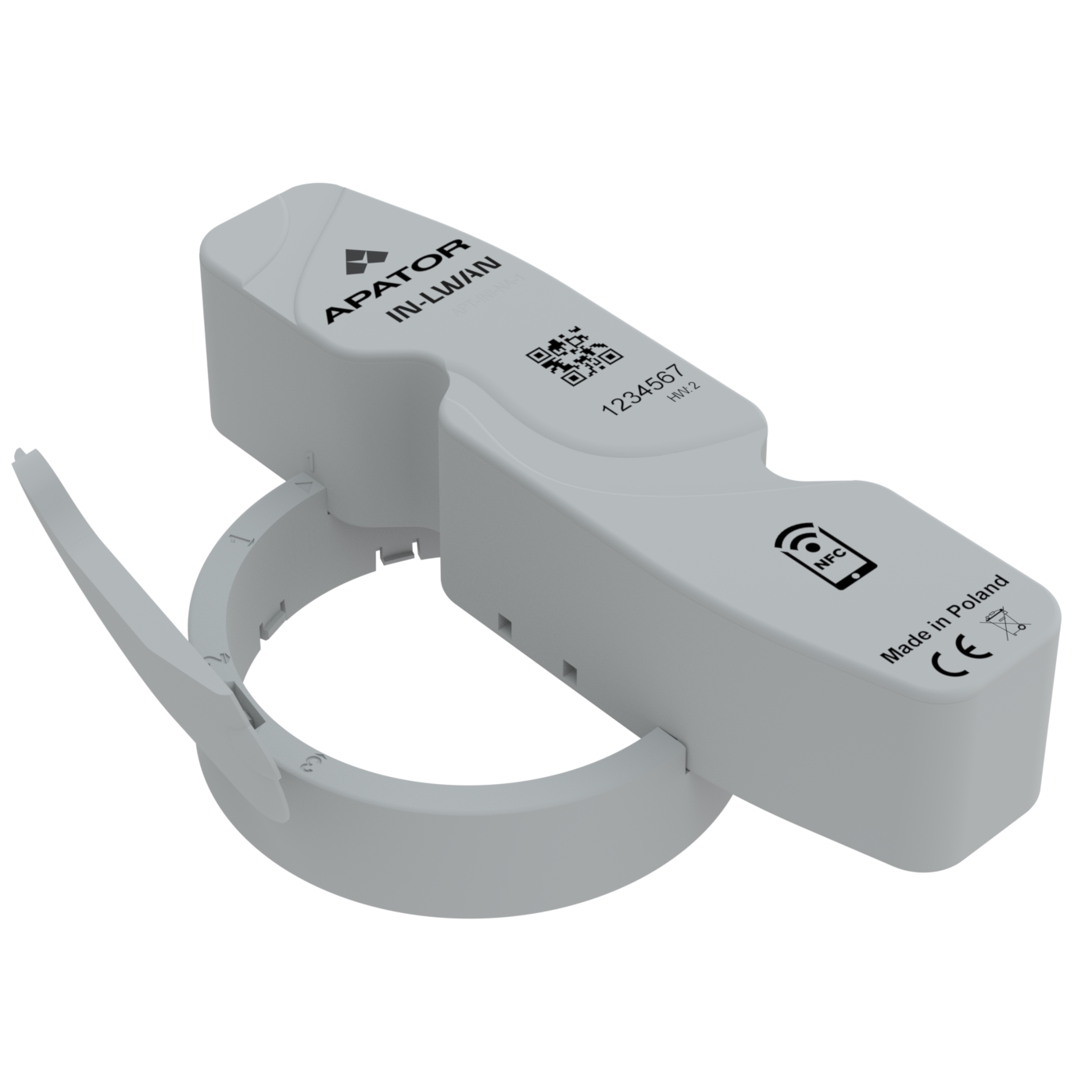

The universal IN-LWAN radio module is a detachable assembly consisting of an adapter ring (optional), a radio module and a cover. The adapter ring is used to mount the radio module on IP65 water meters manufactured by Apator Powqogaz S.A in the required installation position. The module is designed for wireless transmission of metering data in the 868 MHz ISM band using the LoRaWAN communication protocol. By using the IN-LWAN module, you gain:

IP68 ingress protection, providing reliable performance in harsh environmental conditions

Automatic fallback from LoRaWAN to wM-Bus

High resistance to external magnetic fields

Alarm event reporting, including removal (tamper), leakage, and magnetic field interference

The ability to install the module with up to 358° rotation, enabling easier installation and improved register readability in demanding operating conditions

Battery lifetime up to 12 years, depending on configuration

Parameter	IN-LWAN	IN-LWAN ANT3
Antenna	Internal – standard version	External antenna path, L = 3 m
Mounting method	Using an adapter ring for IP65 water meters, and without an adapter ring for IP68 water meters
Battery life	Up to 12 years of operation + 1 year of storage for the following temperature profile: 10% of operating time at 10°C, 80% at 20°C, and 10% at 30°C
Operating temperature range	–15°C ÷ 60°C
Degree of protection	IP68
LORAWAN Class: A	LoRaWAN confirmed frames – communication with the LoRa gateway (network joining, link quality diagnostics) LoRaWAN unconfirmed frames – regular meter reading transmissions wM-Bus frames – communication in fallback mode
Transmission interval	LoRaWAN transmission every 7 hours wM-Bus transmission every 10 seconds
Protocol	LoRaWAN Standard 1.0.4
Range	Up to 2000 m in urban areas Up to 5000 m in rural areas
Weight	0,138 kg
